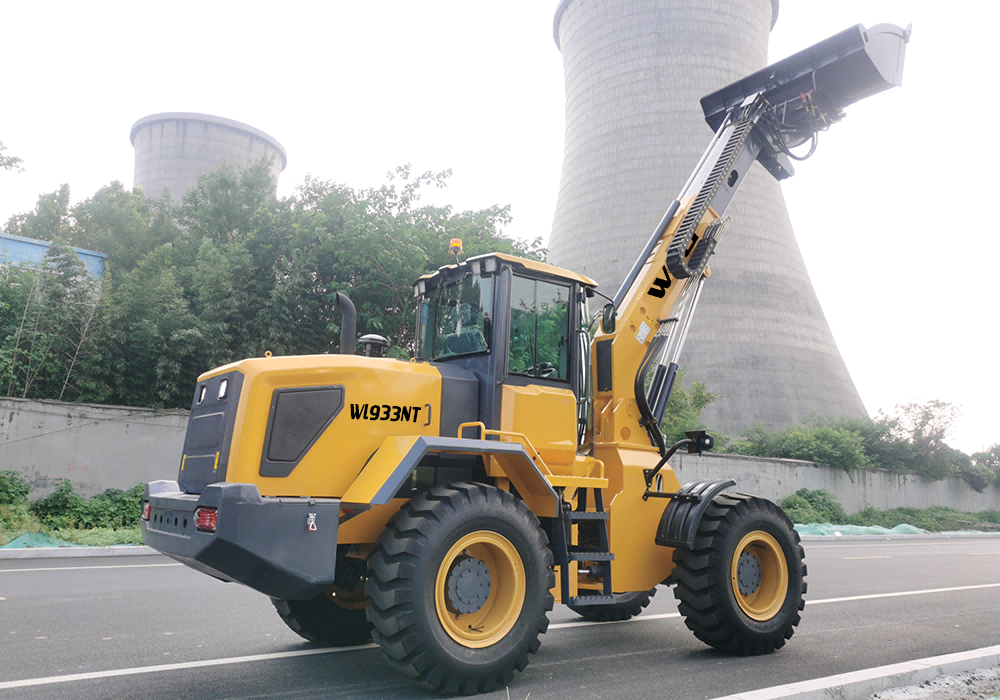

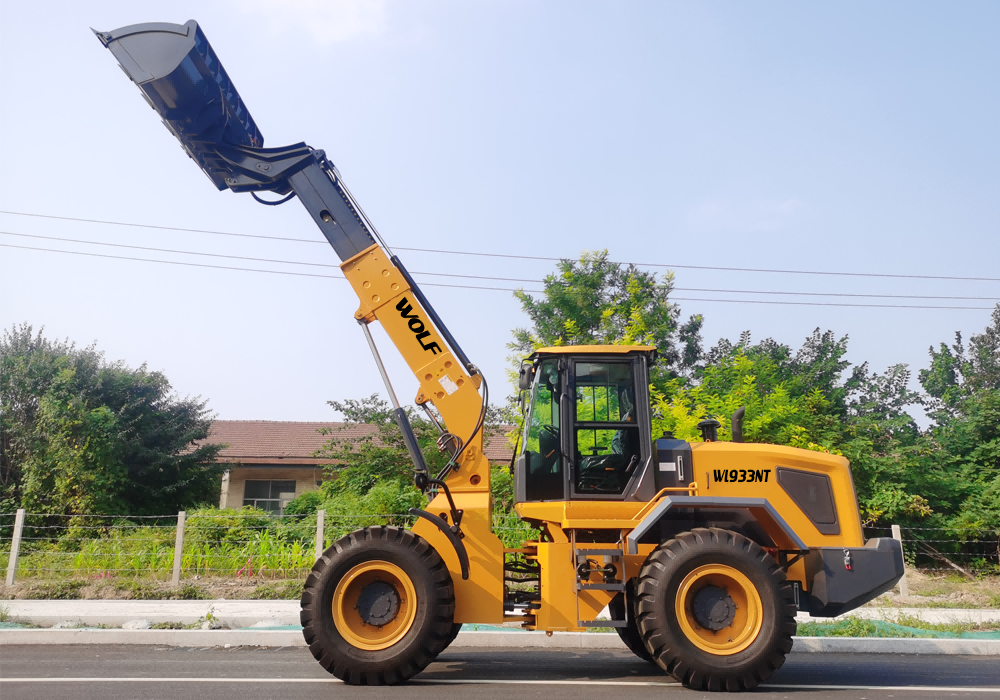

WL933NT

Telescopic Loader

KeySpecs
Rated Power:
92kw/125hp
Operating Weight:
8600kg/18960lb
Rated Load:
3000kg/6614lb
Request A Quote

Overview

Engine manufacturerWeichai
Motor type

DEUTZ WP6G125E22

Cylinder
Rated Power92 kw
At max. Rpm2200 rpm
Type of coolantWater
Emissions
Engine manufacturerDongfeng Cummins
Motor type

6BT3.9-C130

Cylinder
Rated Power
At max. Rpm
Type of coolantWater
Emissions
Tank capacity for fuel90 l
Tank capacity for hydraulic oil90 l
Type of driveTorque converter
Drive unit Gearbox
Speed levels2
Operating brakeDisc brakes
Parking brakeDisc brakes
working pressure (max.)

16 MPa

Boom lifting time4.8 s
Kinematics type PZ
Lifting cylinder2
Tipping cylinder1
Quick change systemHydraulic
Steering typeHydraulically activated articulated pendulum steering
Steering cylinder2
Oscillating angle12
Engine manufacturerWeichai
Motor typeDEUTZ WP6G125E22
Cylinder
Rated Power125 hp
At max. Rpm2200 rpm
Type of coolantWater
Emissions
Engine manufacturerDongfeng Cummins
Motor type

6BT3.9-C130

Cylinder
Rated Power hp
At max. Rpm rpm
Type of coolantWater
Emissions
Tank capacity for fuel23.78 US gal
Tank capacity for hydraulic oil23.78 US gal
Type of driveTorque converter
Drive unit Gearbox
Speed levels2
Operating brakeDisc brakes
Parking brakeDisc brakes
working pressure (max.)2320 psi
Boom lifting time4.8 s
Kinematics type PZ
Lifting cylinder2
Tipping cylinder1
Quick change systemHydraulic
Steering typeHydraulically activated articulated pendulum steering
Steering cylinder2
Oscillating angle12

  • WEICHAI DEUTZ WP6G125E22 engine 92kw

  • Engine preheate

  • Gearbox and torque converter

  • KINGLITER Axle

  • HAIHONG Main Valve

  • Working Pump 2100/0010 JINPENG

  • VARTA anti freeze battery

  • luxury cabin with heater, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.

  • Air conditioning

  • Adjustable dashboard

  • Electronic control joystick

  • Fully electronic contro

  • 17.5-25 tires

  • Standard bucket


  • Dongfeng Cummins 6BT3.9-C13

  • YTO 105kw

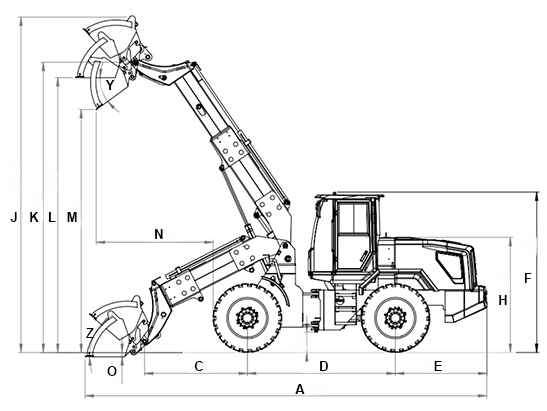

Dimensions

-Standard tires

17.5/25

-Rated load3000 kg
-Rated bucket capacity1.6 m³
ATotal length7790 mm
BTotal length without bucket6639 mm
CBucket pivot point (to center of axle)1995 mm
DWheel base2869 mm
ERear overhang1775 mm
FHeight with operator's canopy
FHeight with cab3109 mm
HSeat height2231 mm
JTotal working height6499mm
KBucket pivot point (max. lift height)5625 mm
LLoad-over height5327 mm
MDumping height4710 mm
ODigging depth83 mm

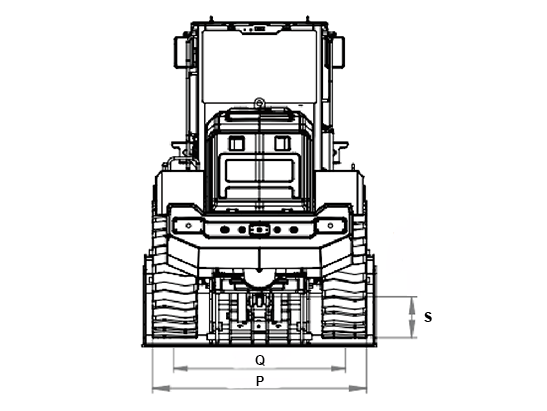

PTotal width2070 mm
QTrack width1670 mm
SMin.Ground Clearance394 mm

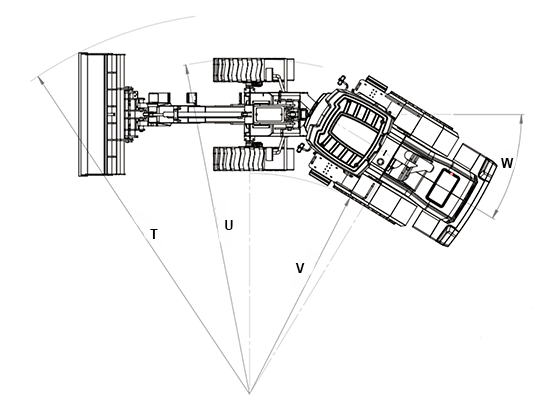

TMaximum radius7039 mm
URadius on the outer edge6182 mm
VInner radius4072 mm
WArticulation angle31°
XRollback angle at max. lift height
YDumping angle36°
ZRollback angle on ground41°
-Standard tires

17.5/25

-Rated load6614 lb
-Rated bucket capacity2.1 yd³
ATotal length306.7 in
BTotal length without bucket261.4 in
CBucket pivot point (to center of axle)78.5 in
DWheel base113.0 in
ERear overhang69.9 in
FHeight with operator's canopy
FHeight with cab122.4 in
HSeat height87.8 in
JTotal working height255.9 in
KBucket pivot point (max. lift height)221.5 in
LLoad-over height209.7 in
MDumping height185.4 in
ODigging depth3.3
PTotal width81.5 in
QTrack width65.7 in
SMin.Ground Clearance15.5 in
TMaximum radius277.1 in
URadius on the outer edge243.4 in
VInner radius160.3 in
WArticulation angle31°
XRollback angle at max. lift height
YDumping angle36°
ZRollback angle on ground41°

Attachments

Dustpan Bucket

Grasp Fork

Backhoe

Bale Spear
